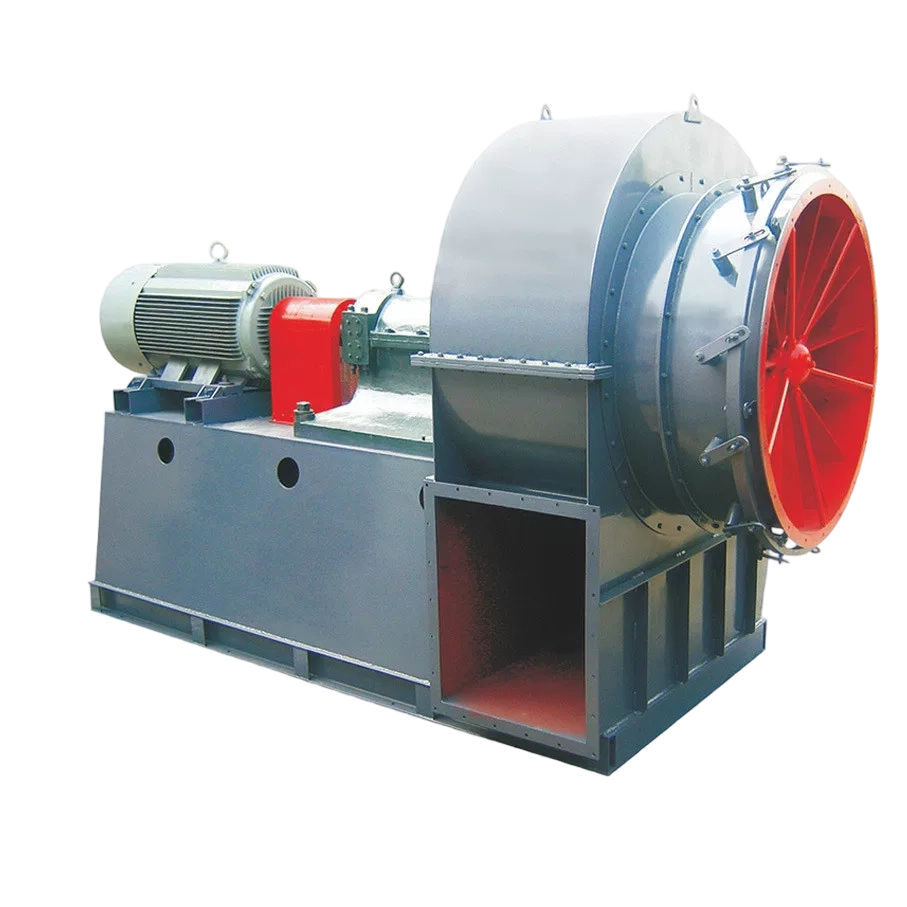

Y4-73 boiler centrifugal fan

Y4-73 boiler centrifugal fan

The G4-73 and Y4-73 boiler fans are designed for use in fan systems serving 2 to 670 T/h steam boilers in thermal power plants. The G4-73 model can also be used for general mine ventilation. When serving as a ventilator, the G4-73 conveys air with a maximum temperature not exceeding 80°C. When used as an induced draft fan, it conveys flue gas with a maximum temperature not exceeding 250°C.

The G4-73 is equipped with a Type A replaceable motor. General ventilation motors are manufactured to Class E standards, while high-temperature motors are constructed using heat-resistant materials. To aid heat dissipation, a cooling fan wheel is added to the extended shaft between the impeller and the motor housing, effectively blocking heat transferred from the impeller. The G4-73 features a straightforward design.

    Performance Data by Model (A Series):

    • Model 8A: > Power: 15 kW | Rotation: 1450 r/min | Volume: 20442~30993 m³/h | Pressure: 1284~868 Pa

    • Model 9A: > Power: 7.5 kW | Rotation: 960 r/min | Volume: 15229~29219 m³/h | Pressure: 721~481 Pa

    • Model 9A: > Power: 30 kW | Rotation: 1450 r/min | Volume: 35052~44128 m³/h | Pressure: 1511~1100 Pa

    • Model 10A: > Power: 15 kW | Rotation: 960 r/min | Volume: 20891~40077 m³/h | Pressure: 891~594 Pa

    • Model 10A: > Power: 45 kW | Rotation: 1480 r/min | Volume: 48083~60533 m³/h | Pressure: 1867~1359 Pa

    • Model 11A: > Power: 18.5 kW | Rotation: 960 r/min | Volume: 27806~53343 m³/h | Pressure: 1079~719 Pa

    • Model 11A: > Power: 75 kW | Rotation: 1480 r/min | Volume: 53142~80570 m³/h | Pressure: 2437~1646 Pa

    • Model 12A: > Power: 15 kW | Rotation: 730 r/min | Volume: 38282~52661 m³/h | Pressure: 712~495 Pa

    • Model 12A: > Power: 30 kW | Rotation: 980 r/min | Volume: 36100~69253 m³/h | Pressure: 1285~856 Pa

    • Model 12A: > Power: 110 kW | Rotation: 1480 r/min | Volume: 76040~104600 m³/h | Pressure: 2929~1961 Pa

    • Model 13A: > Power: 22 kW | Rotation: 730 r/min | Volume: 34903~66954 m³/h | Pressure: 876~583 Pa

    • Model 13A: > Power: 45 kW | Rotation: 980 r/min | Volume: 45900~88049 m³/h | Pressure: 1514~1008 Pa

    • Model 14A: > Power: 30 kW | Rotation: 730 r/min | Volume: 43591~83624 m³/h | Pressure: 1010~674 Pa

    • Model 14A: > Power: 75 kW | Rotation: 990 r/min | Volume: 79944~109970 m³/h | Pressure: 1681~1167 Pa

    • Model 14A: > Power: 200 kW | Rotation: 1490 r/min | Volume: 120740~166100 m³/h | Pressure: 3864~2676 Pa

    • Model 15A: > Power: 37 kW | Rotation: 730 r/min | Volume: 53617~102854 m³/h | Pressure: 1166~776 Pa

    • Model 15A: > Power: 90 kW | Rotation: 990 r/min | Volume: 70510~135260 m³/h | Pressure: 2016~1341 Pa

    • Model 16A: > Power: 45 kW | Rotation: 590 r/min | Volume: 51699~99178 m³/h | Pressure: 883~555 Pa

    • Model 16A: > Power: 55 kW | Rotation: 740 r/min | Volume: 82333~124820 m³/h | Pressure: 1302~880 Pa

    • Model 16A: > Power: 132 kW | Rotation: 990 r/min | Volume: 130390~164150 m³/h | Pressure: 2097~1526 Pa



    Performance Data by Model (D Series):

    • Model 8D: > Power: 15 kW | Rotation: 1450 r/min | Volume: 20442~30993 m³/h | Pressure: 1284~868 Pa

    • Model 9D: > Power: 30 kW | Rotation: 1470 r/min | Volume: 35052~44128 m³/h | Pressure: 1511~1100 Pa

    • Model 9D: > Power: 7.5 kW | Rotation: 960 r/min | Volume: 15229~29219 m³/h | Pressure: 721~481 Pa

    • Model 10D: > Power: 45 kW | Rotation: 1480 r/min | Volume: 48083~60533 m³/h | Pressure: 1867~1359 Pa

    • Model 10D: > Power: 11 kW | Rotation: 960 r/min | Volume: 20891~40077 m³/h | Pressure: 891~594 Pa

    • Model 10D: > Power: 5.5 kW | Rotation: 720 r/min | Volume: 15886~30475 m³/h | Pressure: 515~343 Pa

    • Model 11D: > Power: 75 kW | Rotation: 1480 r/min | Volume: 53142~80570 m³/h | Pressure: 2437~1646 Pa

    • Model 11D: > Power: 18.5 kW | Rotation: 980 r/min | Volume: 27806~53343 m³/h | Pressure: 1079~719 Pa

    • Model 11D: > Power: 11 kW | Rotation: 730 r/min | Volume: 32220~40562 m³/h | Pressure: 570~415 Pa

    • Model 12D: > Power: 110 kW | Rotation: 1480 r/min | Volume: 76040~104600 m³/h | Pressure: 2829~1961 Pa

    • Model 12D: > Power: 30 kW | Rotation: 980 r/min | Volume: 36100~69253 m³/h | Pressure: 1285~856 Pa

    • Model 12D: > Power: 15 kW | Rotation: 730 r/min | Volume: 28282~52661 m³/h | Pressure: 712~495 Pa

    • Model 14D: > Power: 220 kW | Rotation: 1490 r/min | Volume: 120740~166100 m³/h | Pressure: 3864~2676 Pa

    • Model 14D: > Power: 75 kW | Rotation: 990 r/min | Volume: 79944~109970 m³/h | Pressure: 1681~1167 Pa

    • Model 14D: > Power: 30 kW | Rotation: 730 r/min | Volume: 43591~83624 m³/h | Pressure: 1010~674 Pa

    • Model 16D: > Power: 132 kW | Rotation: 990 r/min | Volume: 130390~164150 m³/h | Pressure: 2097~1526 Pa

    • Model 16D: > Power: 55 kW | Rotation: 740 r/min | Volume: 82333~124820 m³/h | Pressure: 1302~880 Pa

    • Model 16D: > Power: 45 kW | Rotation: 590 r/min | Volume: 51699~99178 m³/h | Pressure: 833~555 Pa

    • Model 18D: > Power: 220 kW | Rotation: 990 r/min | Volume: 185650~233730 m³/h | Pressure: 2659~1934 Pa

    • Model 18D: > Power: 110 kW | Rotation: 740 r/min | Volume: 141170~177730 m³/h | Pressure: 1532~1115 Pa

    • Model 18D: > Power: 55 kW | Rotation: 590 r/min | Volume: 112160~141210 m³/h | Pressure: 965~703 Pa

    • Model 20D: > Power: 355 kW | Rotation: 990 r/min | Volume: 167130~320610 m³/h | Pressure: 3598~2392 Pa

    • Model 20D: > Power: 160 kW | Rotation: 740 r/min | Volume: 160800~243800 m³/h | Pressure: 2039~1378 Pa

    • Model 20D: > Power: 90 kW | Rotation: 590 r/min | Volume: 153860~193700 m³/h | Pressure: 1192~868 Pa
